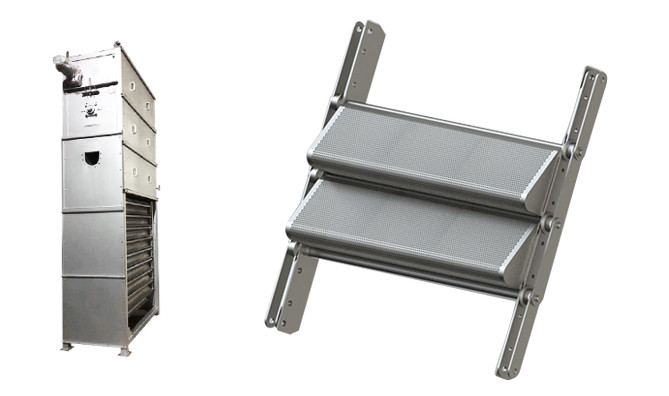

Band screen is a kind of water treatment equipment which can continuously and automatically intercept and remove impurities in the fluid produced by Tianniwei. It is widely used in municipal sewage treatment, especially in printing and dyeing wastewater, and can remove fibrous garbage. At present, it is one of the more advanced solid-liquid separation equipment.

WORKING PRINCIPLE:

During working, the reduction gear installed on frame’s positive-going output shaft rotates geneva wheel, then rotates the chains on filter screen’s two sides, then sewage held on the filter screen goes up to top of machine with the rotation of filter screen.

Through the rotation of filter screen, most of sewage falls off by gravity, rest a little of sewage falls off by the flushing device. After the waste water flows into the tank between filter screen, it will automatically discharge out of machine.

APPLICATION:

Band screen is an efficient sewage decontamination equipment which combines fouling interception and decontamination. It can effectively remove weeds, paper, cigarette ends, melon seeds, fibers, hair and so on. It has a high rate of pollutant capture, and can ensure the effective implementation of the follow-up treatment process

1.High-Efficiency Debris Removal

Equipped with precision-engineered perforated plates or mesh screens to capture even fine solids (down to 0.5–10 mm), ensuring superior pretreatment for downstream processes.

Minimizes blockages in pumps, pipelines, and treatment units.

2.Self-Cleaning & Low Maintenance

Automatic backwashing or mechanical raking mechanisms reduce manual labor and downtime.

Durable materials (stainless steel, polymers) resist corrosion and wear, extending operational lifespan.

3.Space-Saving Design

Vertical or compact configurations optimize space utilization, ideal for retrofitting existing plants or new installations with limited area.

4.Continuous Operation

Handles high flow rates (up to 5,000 m³/h) without performance degradation, ensuring consistent solids removal in peak conditions.

5.Energy Efficiency

Low-power consumption compared to traditional bar screens, reducing operational costs.

6.Versatility

Adaptable to various applications: municipal wastewater pretreatment, stormwater management, industrial water recycling, and agricultural runoff treatment.

7.Environmental Compliance

Helps meet regulatory standards by ensuring consistent removal of plastics, grit, and organic matter, preventing ecological harm.

8.Smart Monitoring Integration

IoT-enabled sensors provide real-time data on screen performance, clogging levels, and maintenance needs, enabling predictive analytics.
