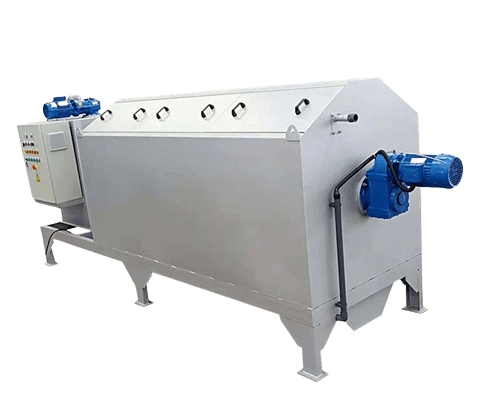

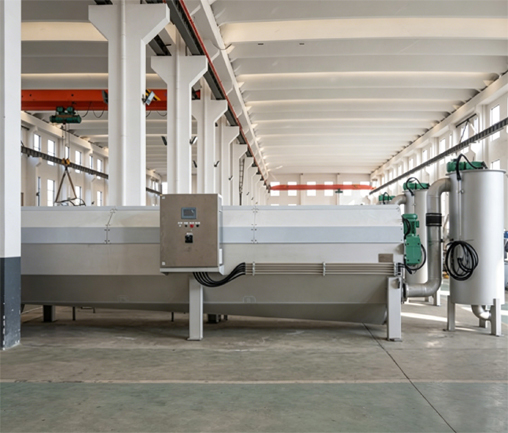

Rotary drum thickener is a kind of mechanical filtering equipment. It is suitable for separating the solid substances in the liquid to the maximum extent and realizing the purpose of solid and liquid separation.
This equipment is one of the practical technologies for wastewater treatment specially developed for the problems of existing screens that are easy to block, easy to break, and heavy maintenance work.
WORKING PRINCIPLE:
The chemically flocculated sludge is concentrated by a low-speed rotating drum filter. During operation, the total sludge volume remains unchanged, and water permeates the filter screen for recycling.
The system saves water significantly by flushing the drum alternately with clean water, treated wastewater and filtrate. It can adapt to diverse working conditions and achieve optimal sludge thickening performance.
Optimal thickening effects are realized by adjusting key parameters including feed rate, chemical type and dosage, drum rotation speed and flushing interval.
1. Simple structure, stable operation, convenient maintenance and long service life.
2. Large filtration capacity, high efficiency, and the recovery rate of suspended solids in wastewater is greater than 80%.
3. Small footprint, low cost, low-speed operation, and easy installation.
4. Fully automatic and continuous work, no need for special personnel to take care of it, and the concentration of leached substances can reach up to 18% or more.
5. Special microfiltration machine for seawater and industrial aquaculture.
| Model | Filter capacity(t/h) | Flush water pressure(mpa) | Power(KW) | Filter drum diameter(MM) | Filter drum length(MM) | Solid-liquid separation rate(%) |
|---|---|---|---|---|---|---|
| TNW-ZG50 | 40-50 | 0.5 | 7.5 | 1000 | 3000 | 85-95 |
| TNW-ZG100 | 80-100 | 1.5 | 15 | 1000 | 6000 | |
| TNW-ZG150 | 120-150 | 2.5 | 18.5 | 1800 | 4500 | |
| TNW-ZG200 | 160-200 | 3.5 | 30 | 1800 | 6000 |
