Decanter Centrifuge



Decanter Centrifuge

Product Introduction

TNW dewatering/thickening decanter centrifuge is usually used for maximim dewatering requirement of municipal and industrial wastewater sludge, with beach angle of 8.5 degrees. It is designed for easy separation material include large particle size, high density difference of solid and liquid, low viscosity, high concentration, high treatment capacity and higher dryness than clarity. Materials like sludge or wastewater containing fine particles usually need to be added with flocculants to gather the fine particles condensed into large ones, and then dewatered with decanter centrifuge.

Application

Drilling mud, environmental protection sewage, oily sludge, cutting fluid, sand washing water, mineral washing water, soda white mud, salt mud dewatering, magnesium aluminum emulsion, steel-making wastewater, precision casting wastewater, construction mud, tunnel mud, mine wastewater, industrial wastewater, organic wastewater, aquaculture wastewater, chemical industrial wastewater, printing and dyeing wastewater, municipal sewage, river sludge, water plant sludge, lake sludge, kaolin grading, calcium carbonate, bentonite, Silica, titanium dioxide, calcium sulfate, barium sulfate, conductive film glass polishing solution, aluminum hydroxide, cryolite, silicate, oil sand separation, landing oil, oil sludge, coal tar, inorganic fertilizer, Chinese medicine extraction such as taxus chinensis, honeysuckle and liquorice, clarification, concentration and dehydration of salt crystals, etc

Product Feature

The beach angle of the T Series dewatering decanter centrifuge is 8.5 Degree, which makes the decanter centrifuge cone section longer, that is, the drying and dewatering area of the decanter is longer, which is conductive to the dewatering performance of T series decanter centrifuge, and much drier solid cakes discharged. The beach angle of 8.5 degree will make the slag discharging more smooth so as to increase the amount of slag discharging.

Decanter Centrifuge Product Feature

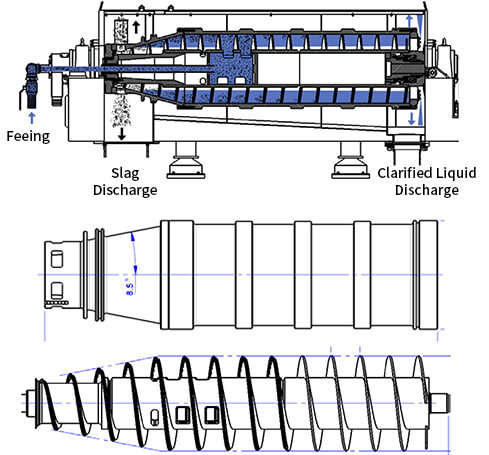

Working principle

1. The bowl and screw of the decanter centrifuge rotate to the same direction with a certain differential speed. The material is continuously introduced into the screw shaft, and then flies to the bowl after its speed highly increased.

2. Under the action of centrifugal force field, heavy solid phase is deposited on the bowl wall to form sediment layer. The solid is continuously pushed to the cone section of the bowl and discharged through the slag outlet.

3. The light liquid phase forms an inner liquid ring, which is continuously overflow out of the bowl from the liquid outlets at the big end of the bowl.

4. Straight section of the bowl is the clarification area, and the cone section is the extrusion drying area.

Decanter Centrifuge Working principle

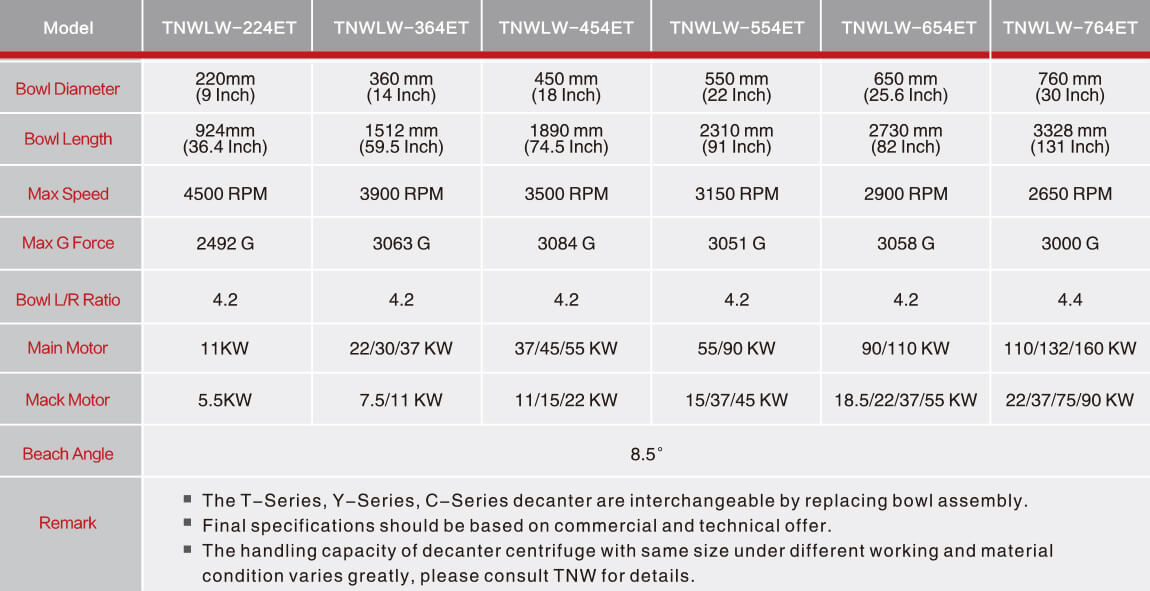

Specification

Decanter Centrifuge Specification
